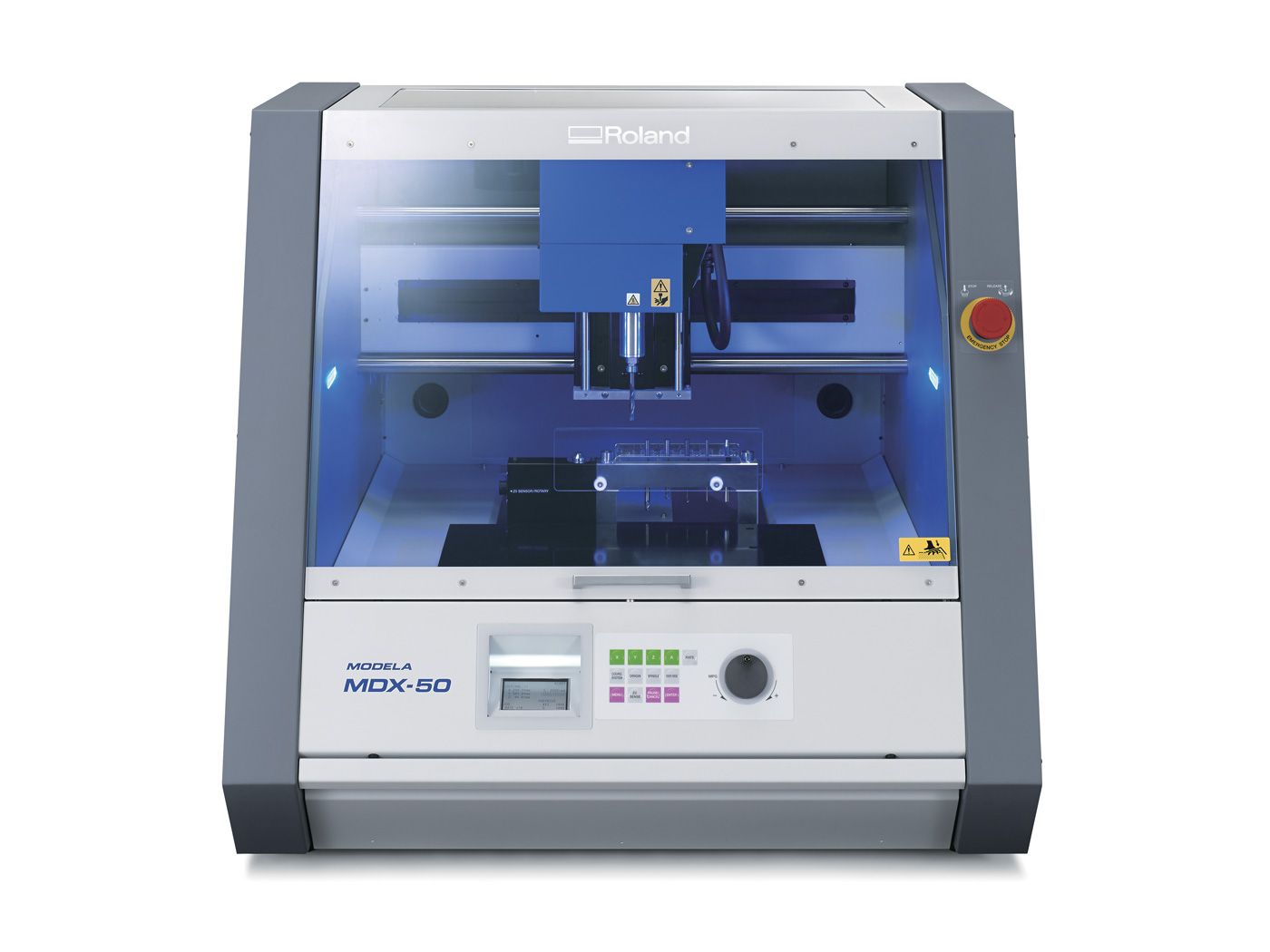

MDX-50 galda CNC frēze apvieno precīzu, automatizētu frēzēšanu un nepārspējamu lietošanas ērtumu. MDX-50 ir ideāls risinājums prototipiem, samazina darbības laiku un vienkāršo ražošanu, lai lietotāji ar dažādām spējām varētu frēzēt funkcionālās detaļas ar neticamu kvalitāti no plaša materiālu klāsta.
Galda CNC iekārta ātrai prototipu veidošanai:
- Automātiskais instrumentu mainītājs – nepārtraukta darbība bez apstāšanās, lai mainītu instrumentus
- Paplašināts apstrādes laukums – 400 mm (X) x 305 mm (Y) x 135 mm (Z)
- Uzlabota piedziņas sistēma atbalsta izmēru stabilitāti
- Komplektā ar lietotājam draudzīgu CAM programmatūru
| Acceptable materials | Resins such as chemical wood and modelling wax, wood (metal not supported) | |
| Operating range | X: 400 mm (15.80 in) Y: 305 mm (12 in) Z: 135 mm (5.3 in) | |
| Table size | W: 400 mm (15.8 in) D: 305 mm (12 in) | |
| Loadable workpiece size | X: 400 mm (15.8 in) Y: 305 mm (12 in) Z: 100 mm (3.9 in) | |
| Axis drive | Stepper Motor | |
| Feed rate | XY: 7 to 3600 mm/min Z: 7 to 3000 mm/min | |
| Software resolution | RML-1: 0.001 mm/step NC code: 0.001 mm/step | |
| Mechanical resolution | 0.01 mm/step (0.39 mil/step; half step) | |
| Spindle motor | Brushless DC motor | |
| Spindle rotation speed | 4500 ～ 15000 rpm | |
| Tool chuck | Collet | |
| Tool Change Method | AutomaticTool Changer (ATC) | |
| ATC Magazine Capacity | 5 Tools + 1 Detection pin (6 Position Capacity) | |
| Tool Shank Diameter | 6 mm, 4 mm using ZH-4 tool holder, 3 mm using ZH-3 tool holder | |
| Dust box dimmensions | 600 x 700 x 95 mm | |
| Interface | USB | |
| Power requirements (VAC/A) | AC 100 to 240 V ±10%, 50/60 Hz, 1.2 A (Overvoltage Category: II, IEC 60664-1) | |
| Power consumption | Approx. 95 W | |
| Acoustic noise level (dB) | During operation | 60 dB (A) or less (when not cutting) |
| During standby | 45 dB (A) or less | |
| External Dimensions | 760 (W) × 900 (D) × 732 (H) mm (29.92 × 35.43 × 28.82 in) | |
| Weight | 122 kg (269 lb) | |
| Installation environment | Indoor use, Altitude: Up to 2000 m (6562 ft.), Temperature: 5 to 40 ℃ (41 to 104°F), Humidity: 35 to 80 % (no condensation), Ambient pollution degree: 2 (as specified by IEC 60664-1), Short-term temporary overvoltage: 1440 V, Long-term temporary overvoltage: 490 V | |
| Included items | Power cable, USB cable, manual, Roland DG Software Package CD, detection pin, hexagonal screwdriver, hexagonal wrench, wrench, tool holder, tool positioner, Z0 sensor | |
